W4ZT UHF Repeater

Union City, Georgia
442.125 MHz (+5 MHz) tone required 100 Hz

Motorola T1504A UHF Duplexer

(click the small pictures to see a larger picture in a new browser window)

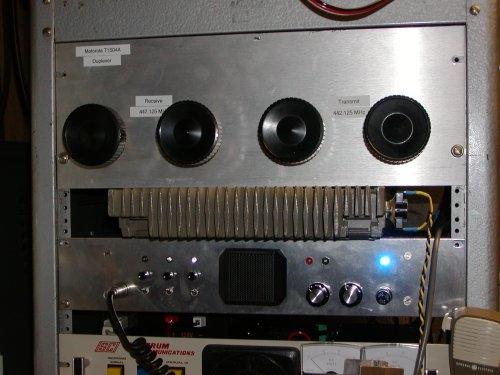

Click for Larger Picture The UHF Duplexer with the preamp hanging off the right side in the picture.

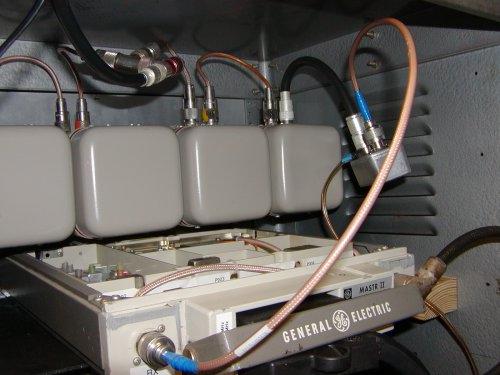

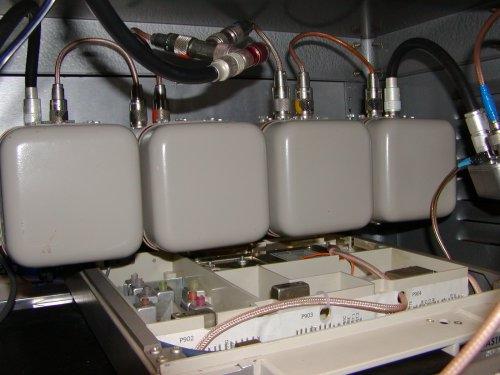

Click for Larger Picture You can see the antenna cable and the cavity interconnect cables here.

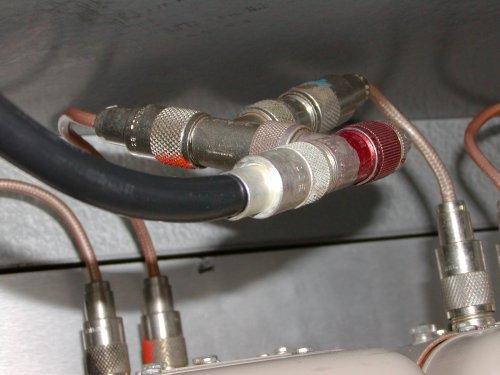

Click for Larger Picture This is the antenna connection to the duplexer with the desense tee in place.
