GS-35B Amplifier For 160 Meters
Built By Bob Briggs, VK3ZL

First licenced in 1978, my primary interest in ham radio has always been home brewing and 160 meters. I recently got the opportunity to put together this desk top amplifier using the GS-35B triode. The design is not original although I have included a few ideas of my own. I contacted Tony W4ZT after viewing his page on GS-35B amplifiers (http://gs35b.com) and the success of the project is largely due to his expert advice and encouragement for which I am grateful. My aim was to have a compact but reasonably efficient desk top amplifier which would produce around 1200 watts output. This unit easily fills that aim.The unit weighs over 75 pounds and measures 18 1/2 inches wide by 7 inches high by 18 inches back. I encourage others to try home brewing. It is a rewarding and pleasant pastime. Robert Briggs.......VK3ZL


(click the small pictures below to see a large picture in another browser window)

1

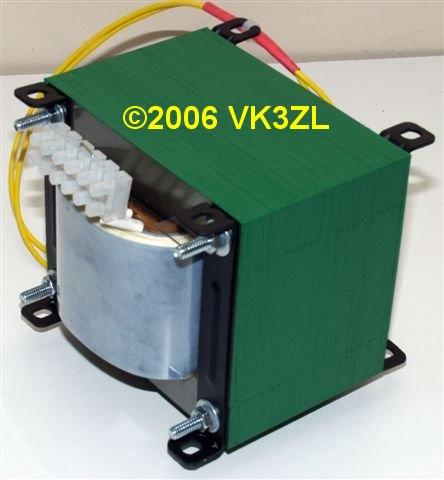

Transformer. 1500 Watt CCS core. 1250 VAC.

2

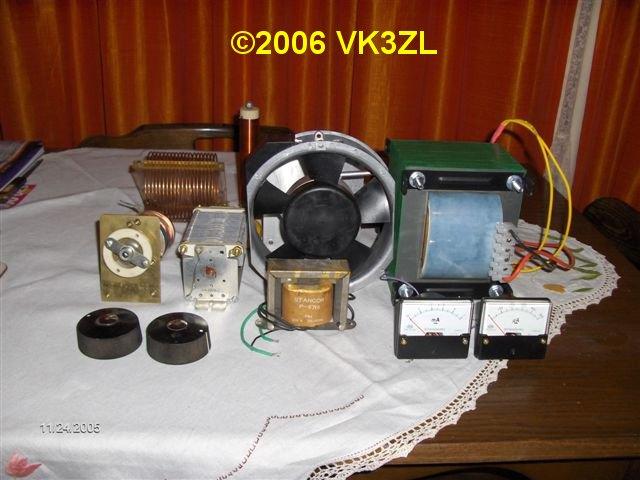

Gathering likely components.

3
Setting components out.

4
See how they fit into box.

5

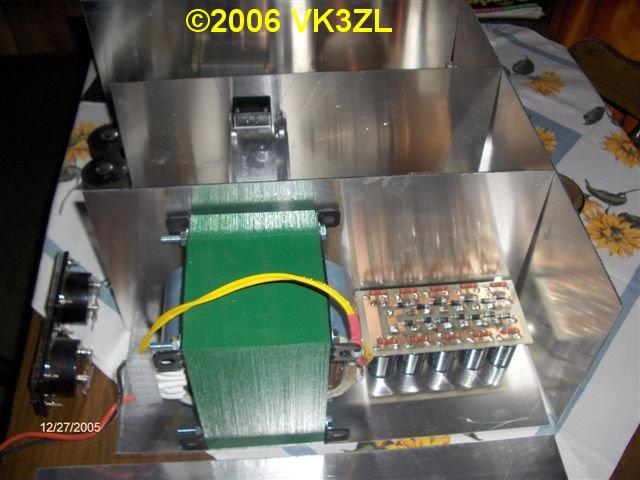

HT compartment.

6
Looks about right.

7

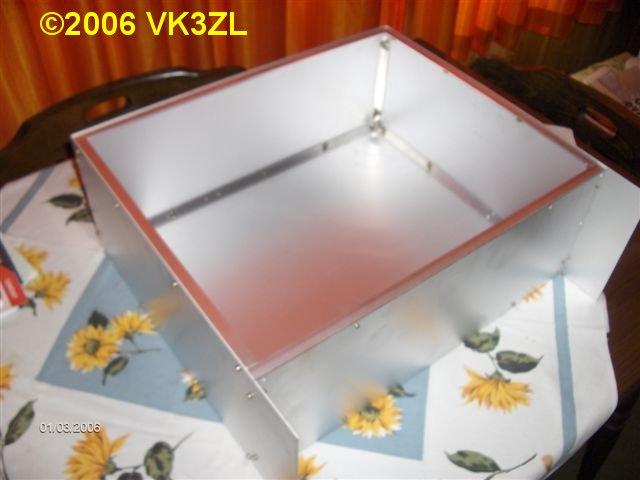

Box has been dismantled, panels etched in caustic and reassembled.

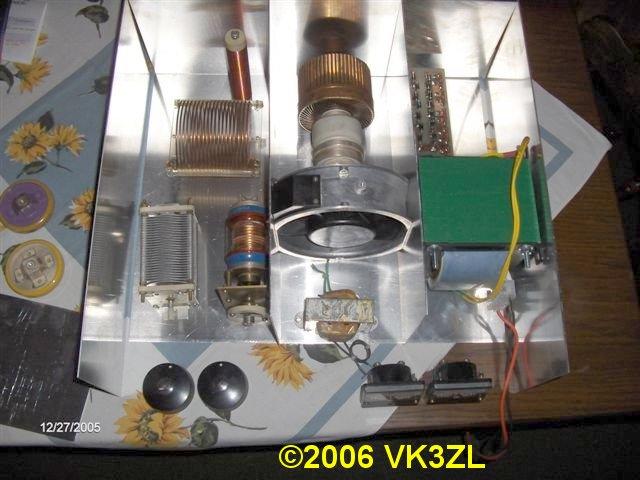

8

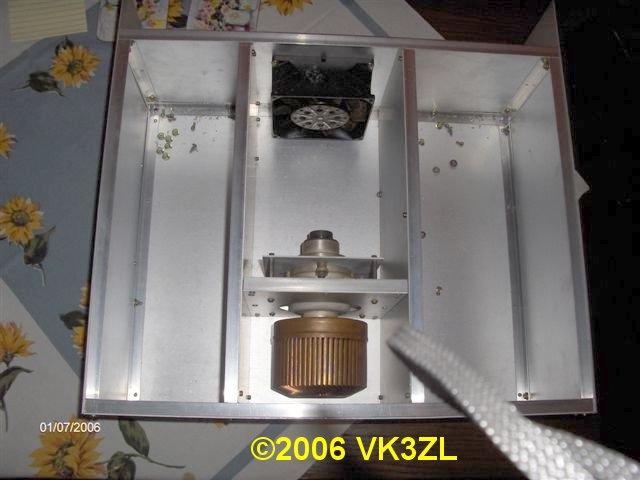

Papst blower and tube in place.

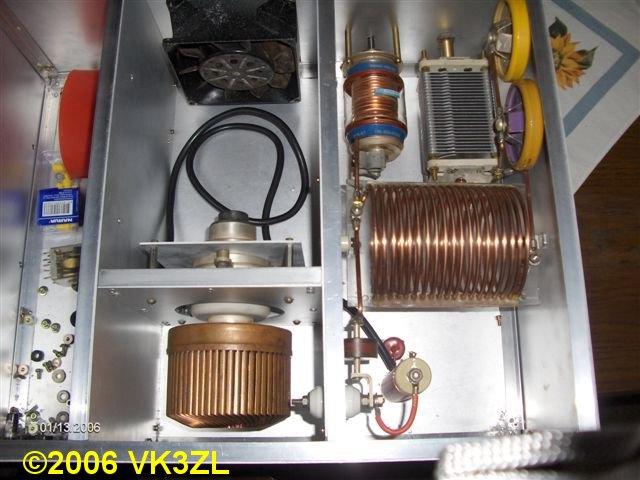

9

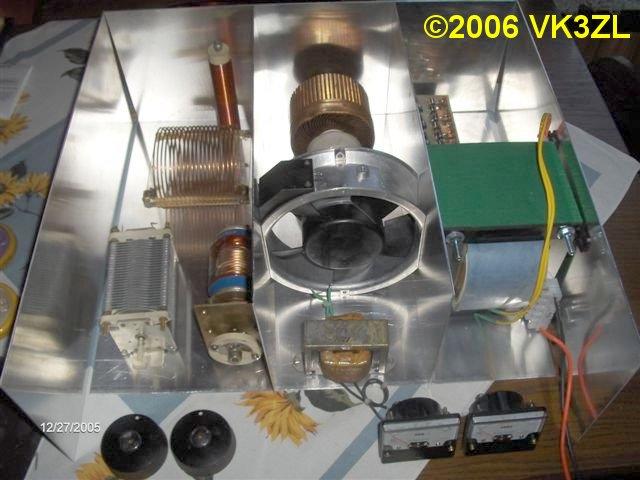

Coming together.

10
Coming together.

11
Pi network hardware.

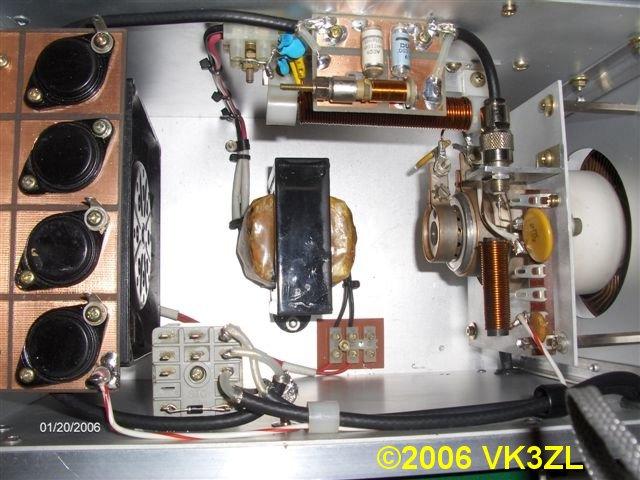

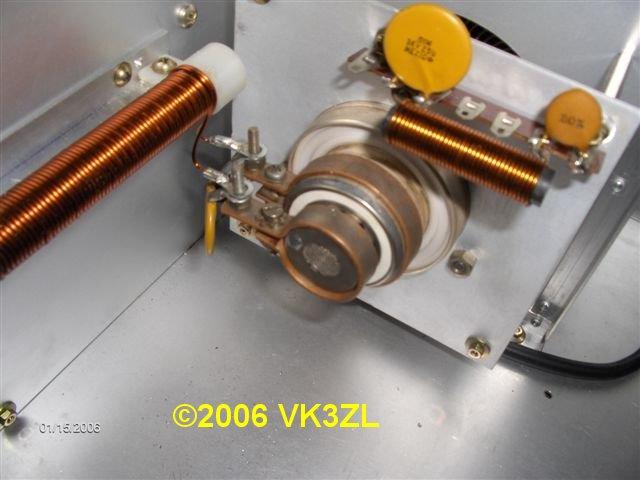

12
Cathode compartment with filament choke and B minus line choke.

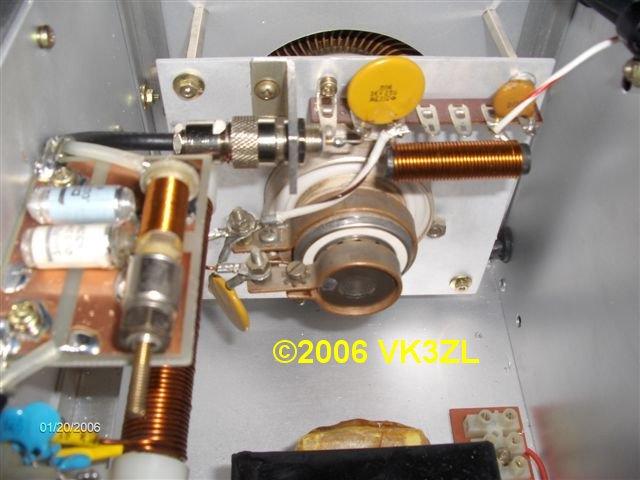

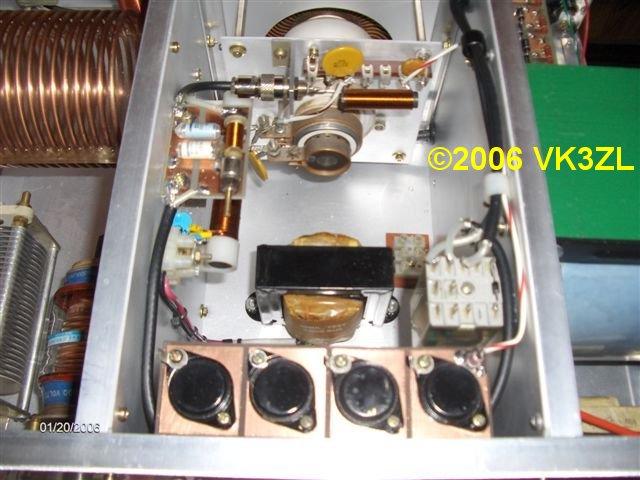

13
Another view of the cathode and filament.

14
Filament transformer.

15
Getting the hardware in place.

16
Selectable zener diodes for bias.

17
160 metres tuned Pi network.

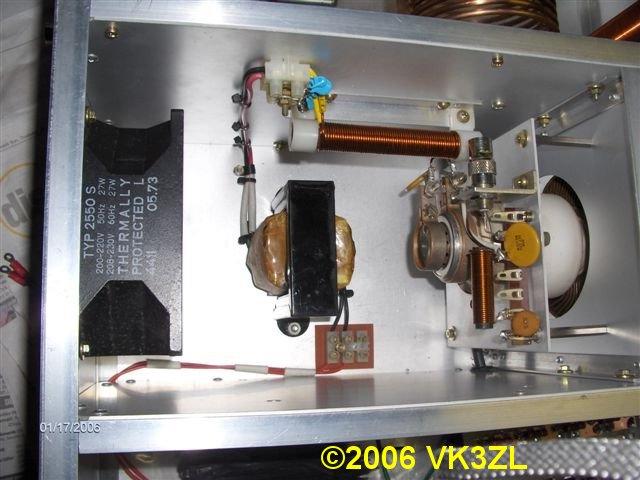

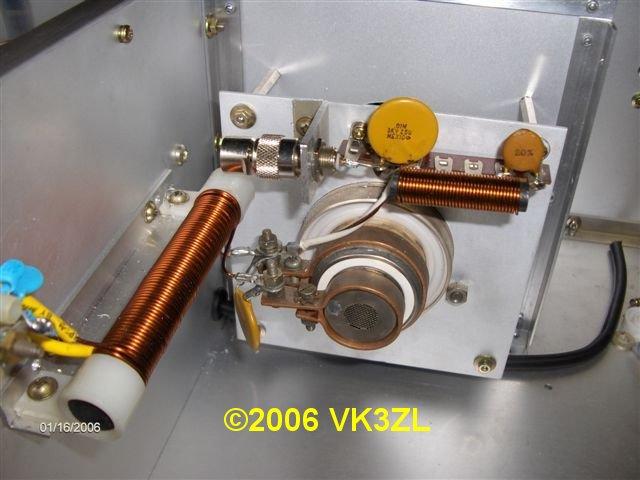

18
Cathode compartment.

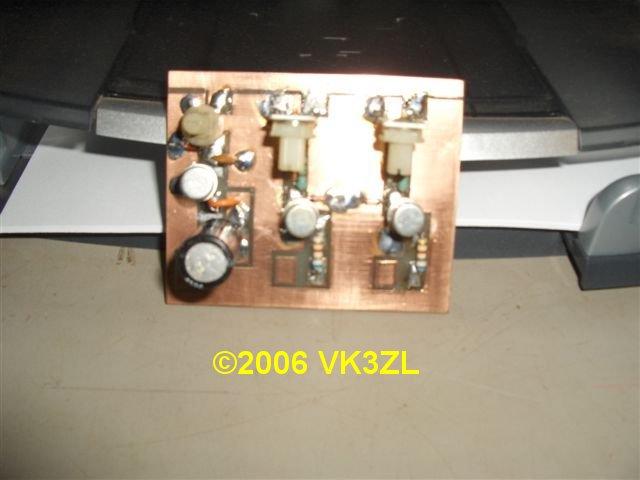

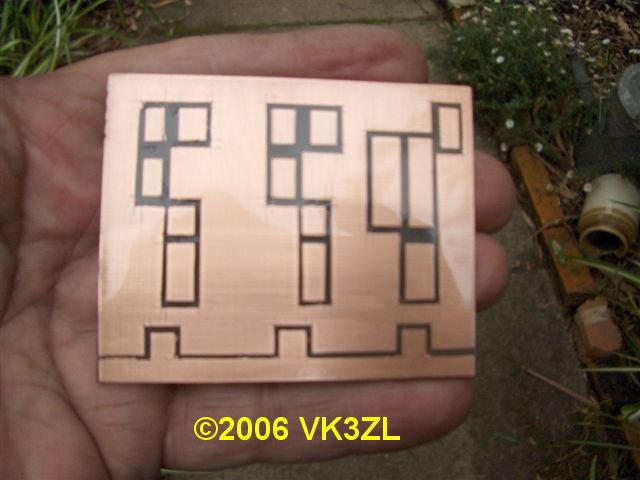

19
Grid protection circuit board.

20
Completed board for relay trip and indicator leds.

21

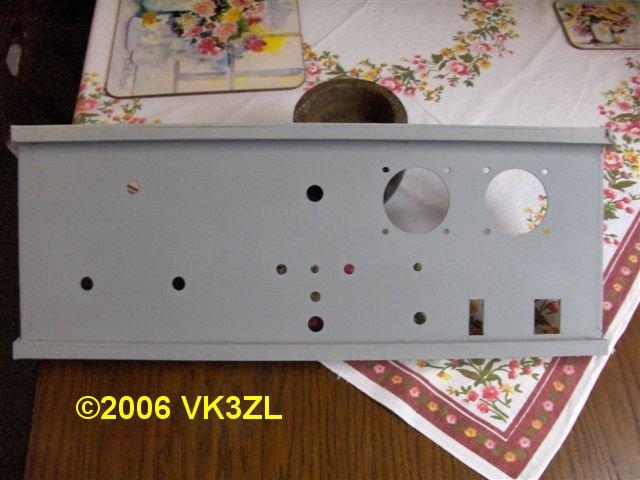

Front panel, raw state, sprayed with etch primer.

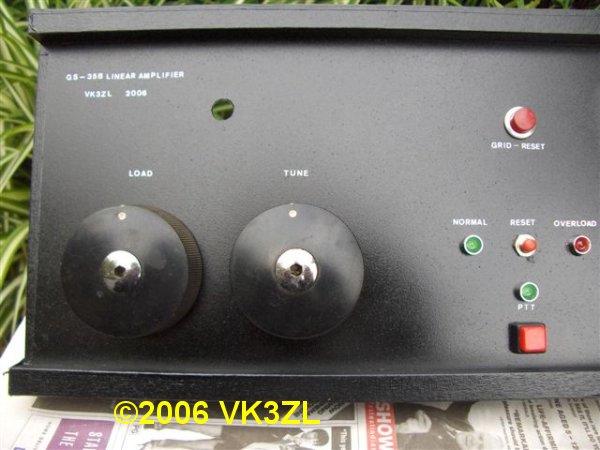

22

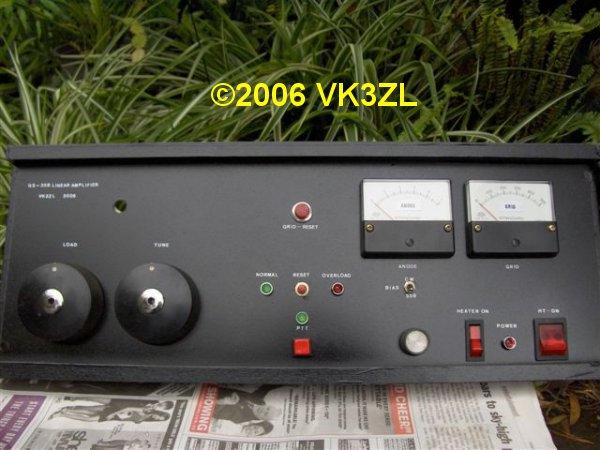

Front panel lettered and controls mounted.

23
Hole for future bandswitch.

24

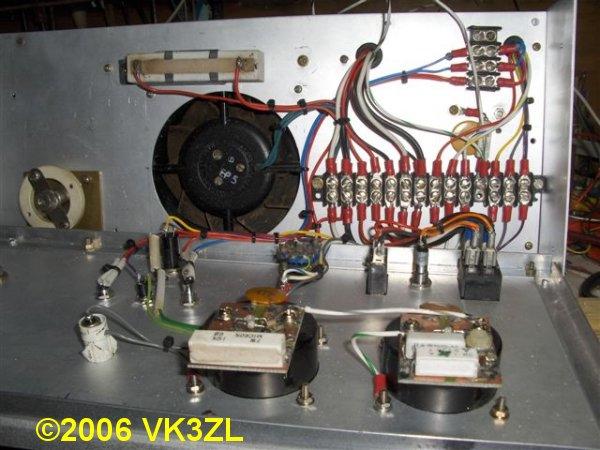

My pet hate, wiring. Front panel to main chassis

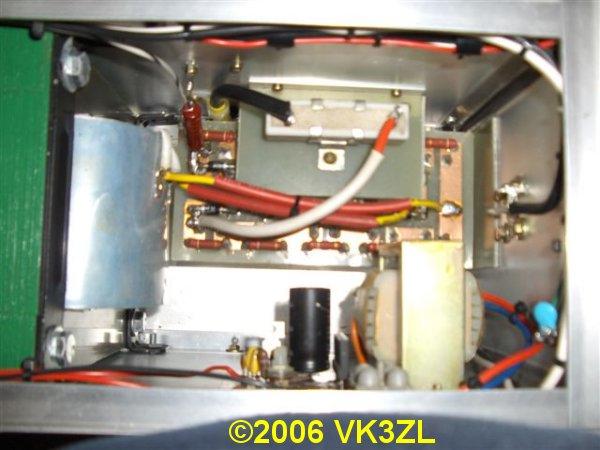

25
HV supply and grid trip relay

26

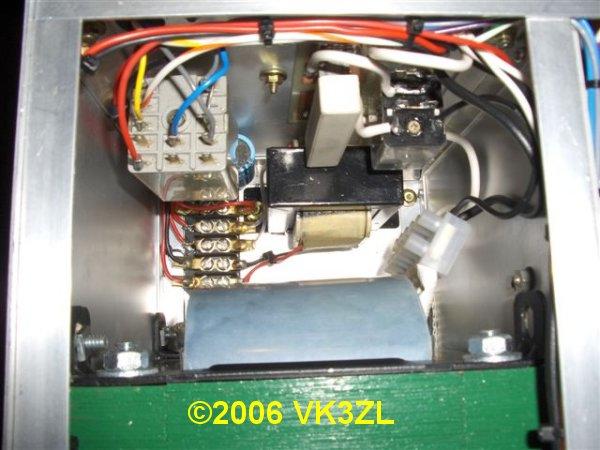

Step start relay supply and grid trip relay.

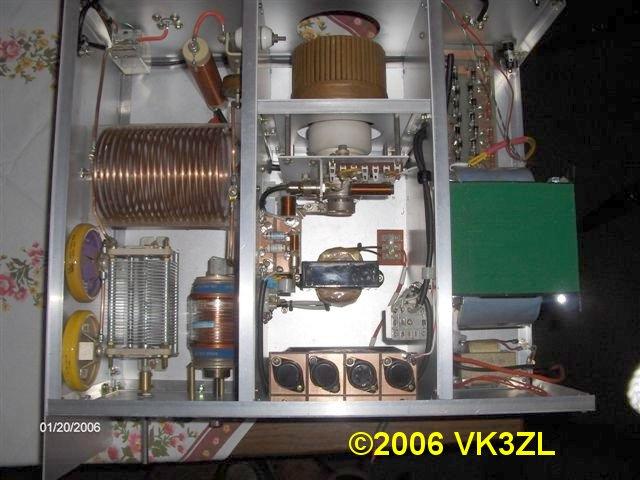

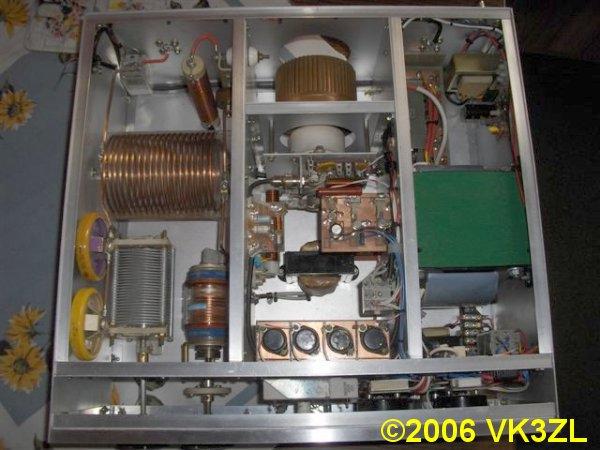

27
Over all view

28
Business end

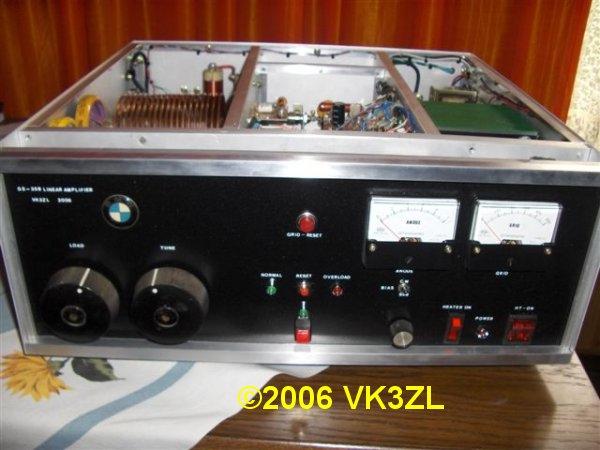

29

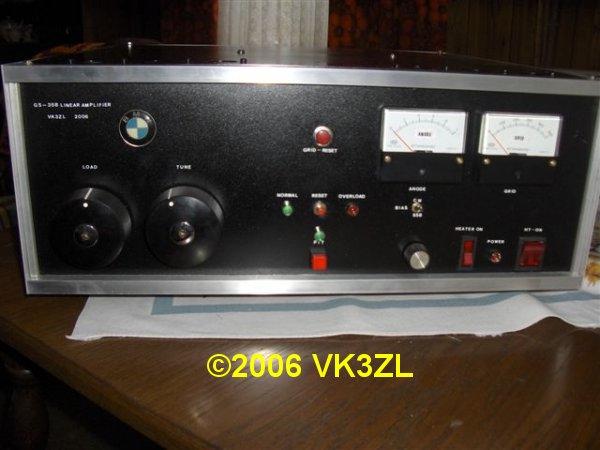

Finished front view

30
another front view

31

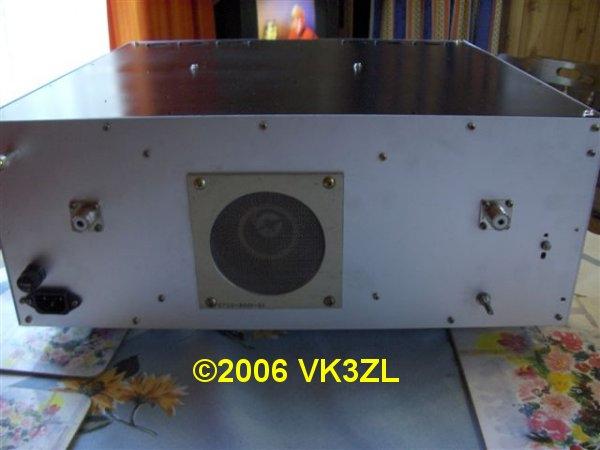

Back view showing exhaust

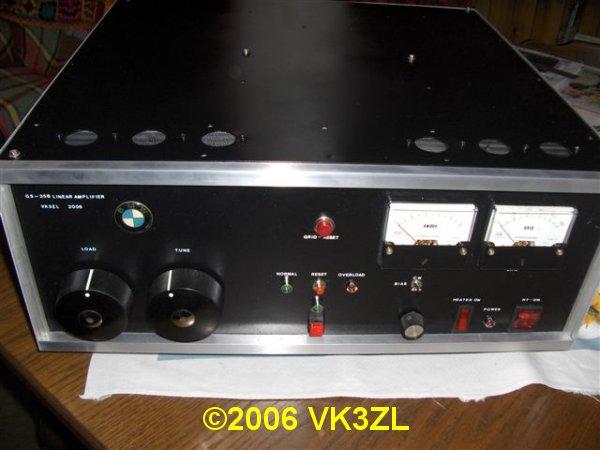

32
Front showing air inlets
June 10, 2006 Hamfest

33

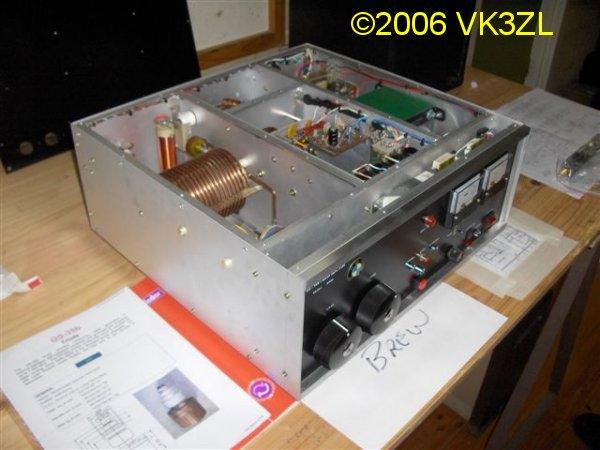

Amp on display at the convention and home brew contest

34
First place certificate and new soldering station and driver set prizes

35
Closeup of first place certificate

36

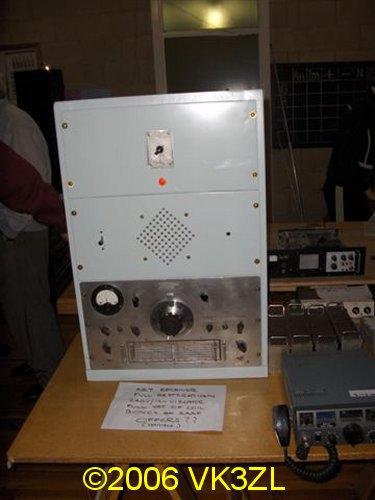

Restored AR7 at the fest.

37

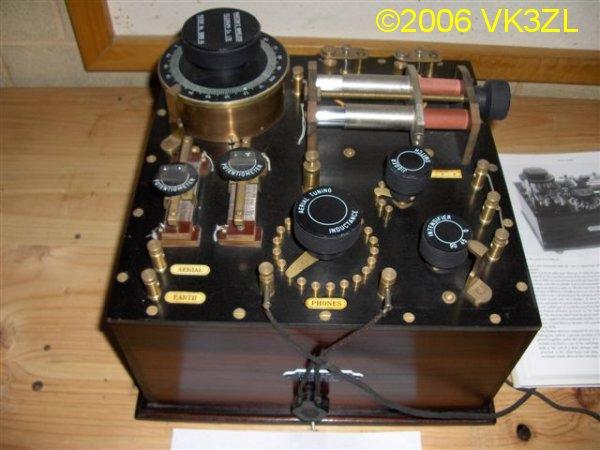

Replica working crystal set built from a book article circa 1906.All the brasswork and the case is home made.For effort I would have judged it the winner.

38

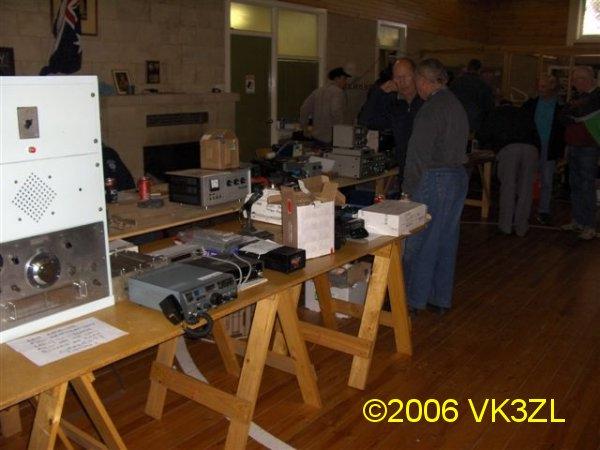

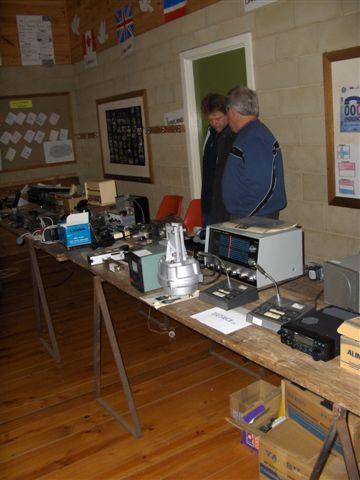

Some of the tables

39
Some of the tables

40
Some of the tables

41
Alan

42
A few friends at the front door
.
31
.
32

June 8, 2006
