W4IW's YC-179 Amplifier Project

(click the small pictures to see large pictures in a new browser window)

1

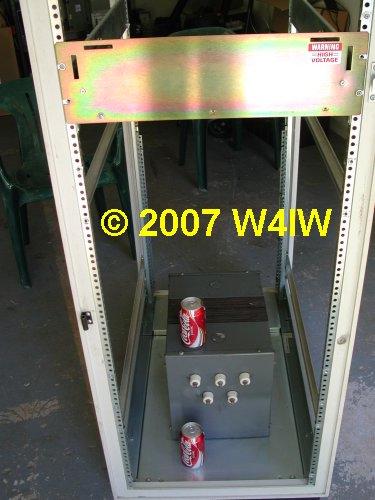

This is the transformer that George purchased from Surplus Sales of Nebraska

2

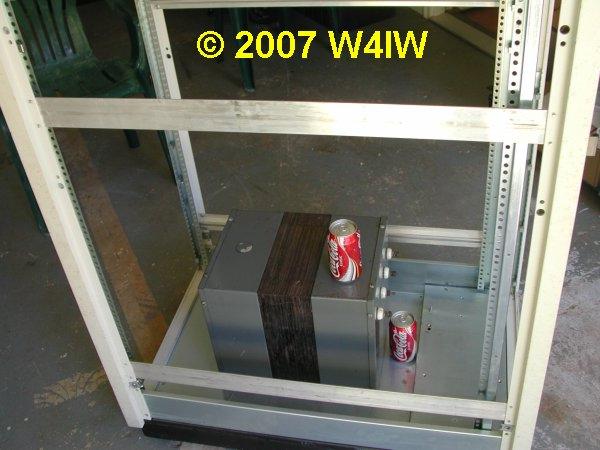

The Coke cans were added to give you a feel for the size. The transformer weighs about 200 lbs.

3

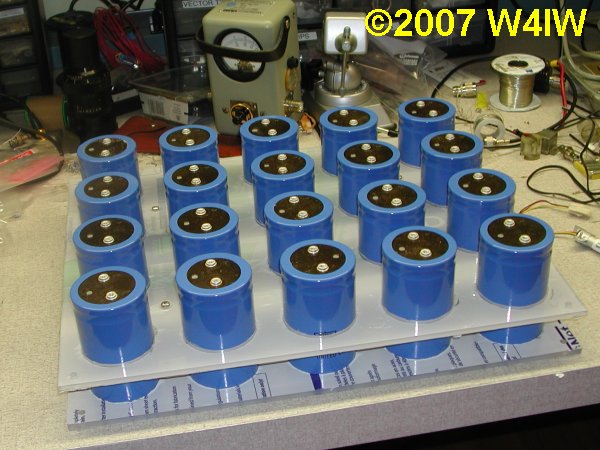

Here is the capacitor bank being assembled 1/7/2008.

4

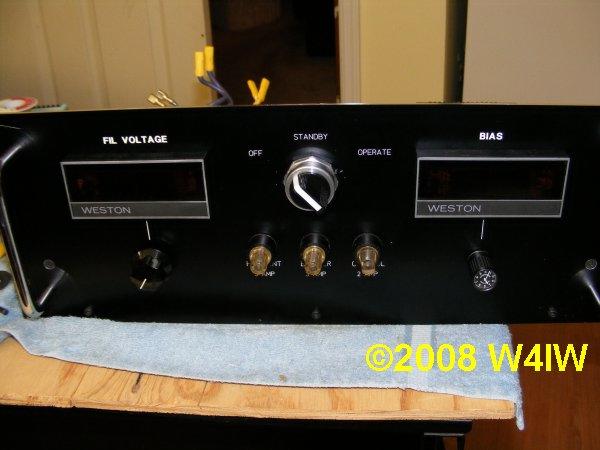

This is the filament, bias and control panel.

5

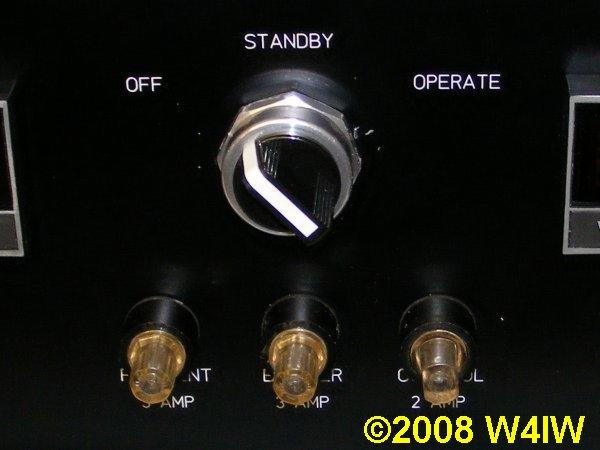

Detail of the center of the filament, bias and control panel.

6

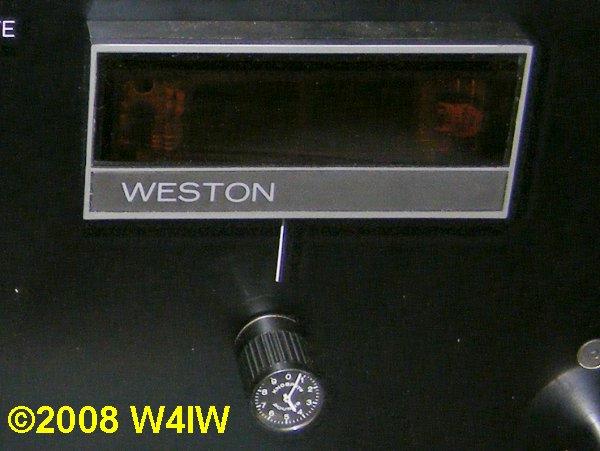

Detail of the bias adjustment control and metering.
.
.
