Adding a Trailer Hitch
To My John Deere LT155 Mower
(click the small pictures to see a larger picture in another browser window)

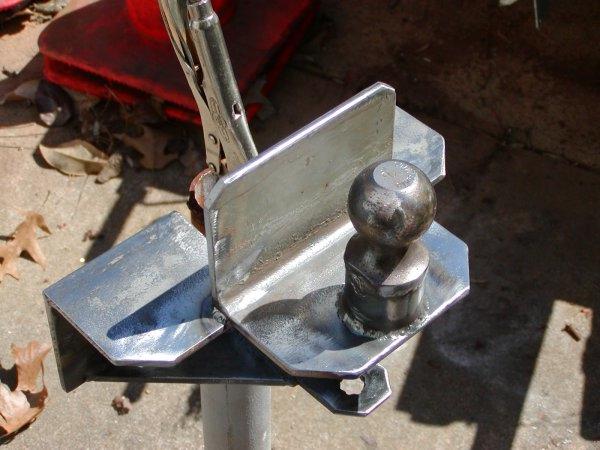

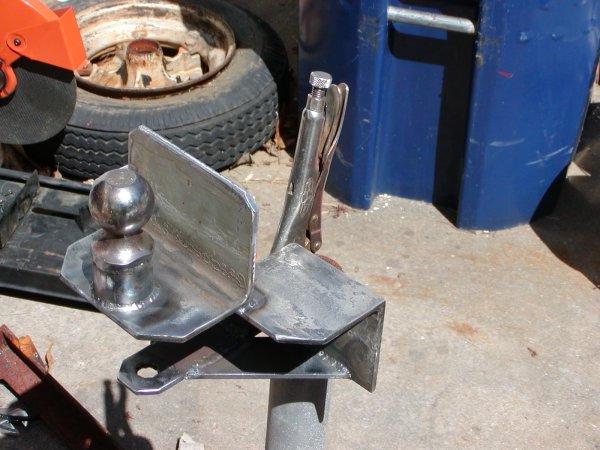

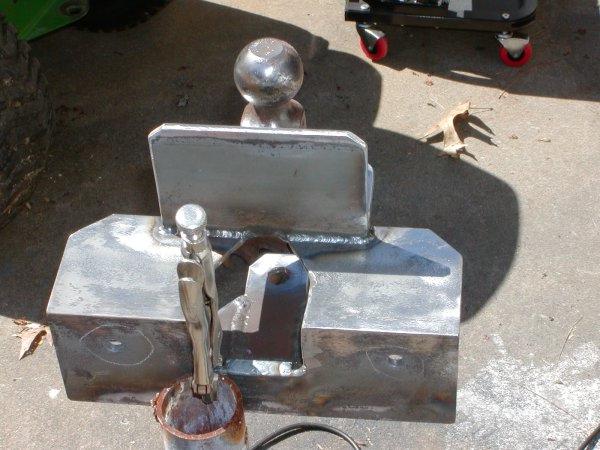

Cleaned up for priming.
3/8/2004

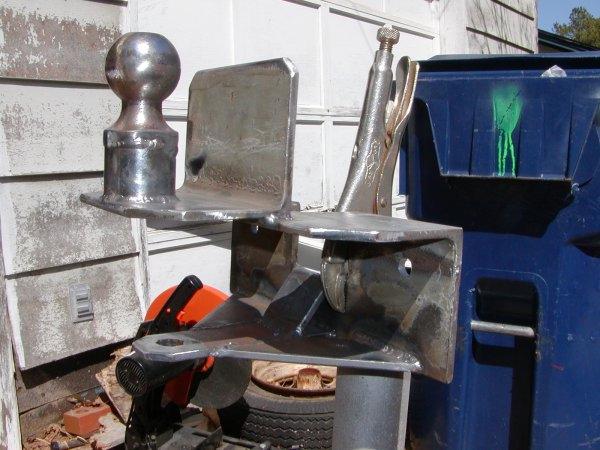

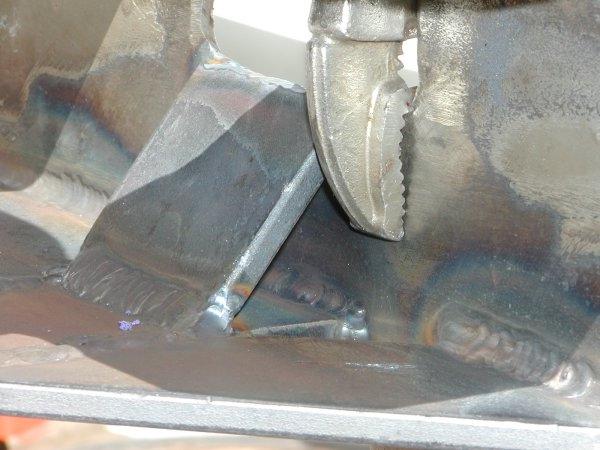

The whole project was TIG welded.

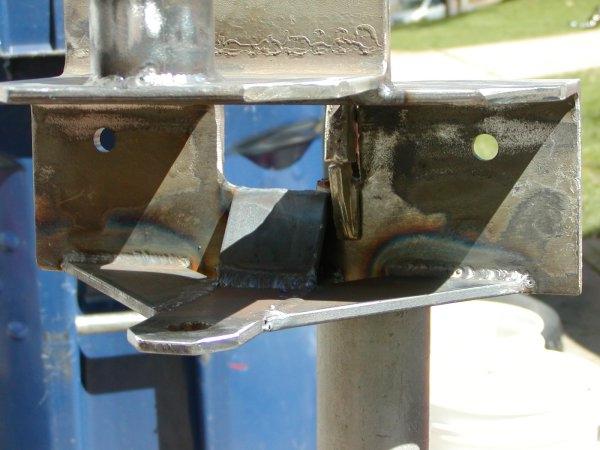

The cutout in the larger angle iron was done with oxy-acetylene before welding.

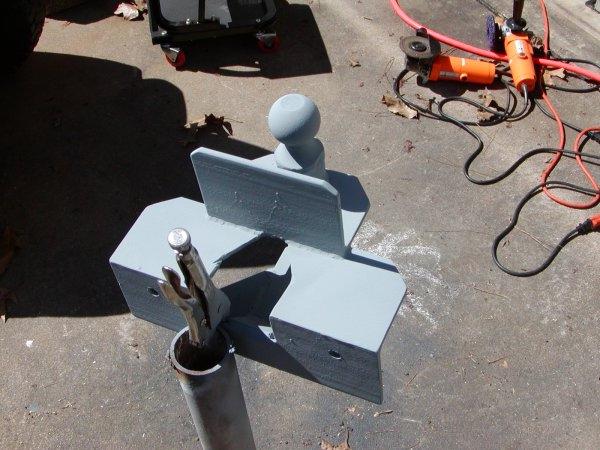

Primed with cold galvanizing.

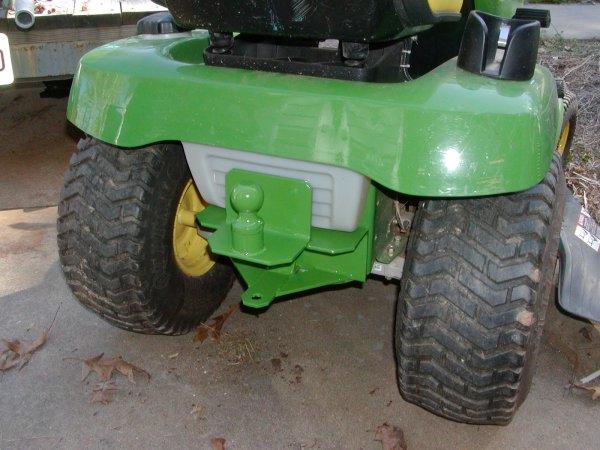

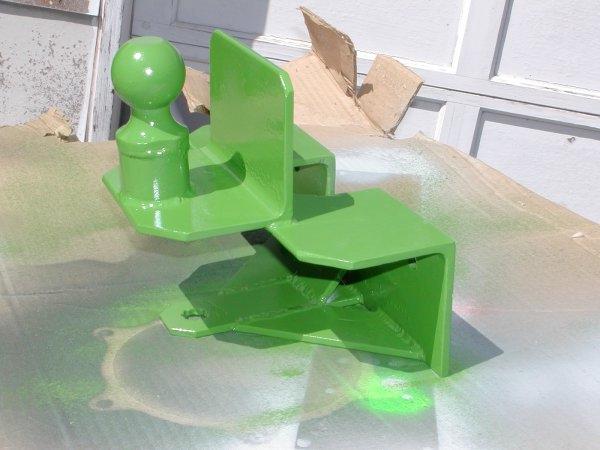

And painted with JD green.

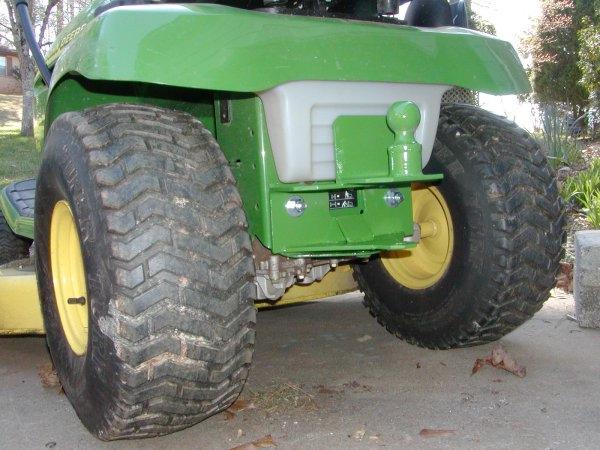

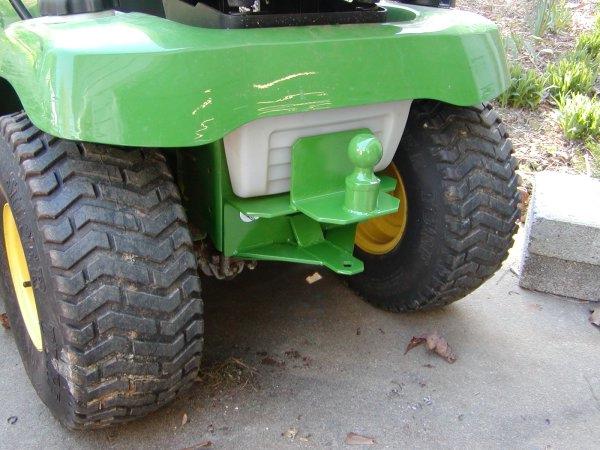

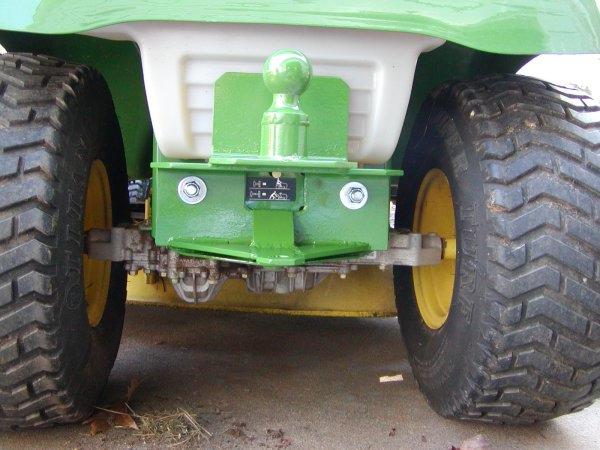

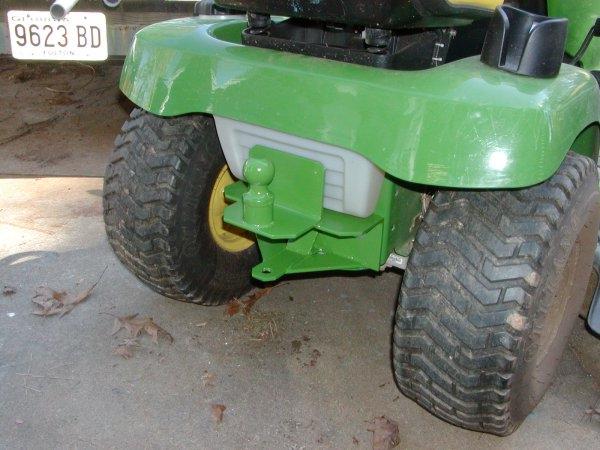

Bolted up with two 1-1/2 inch long 1/2 inch bolts, four flat washers and two nylon insert nuts. I used existing holes in the mower frame.

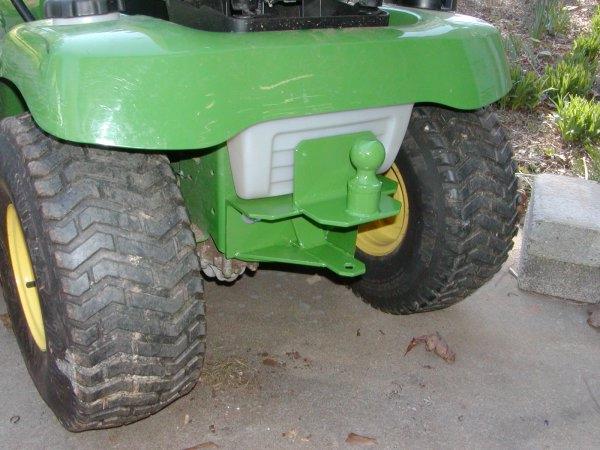

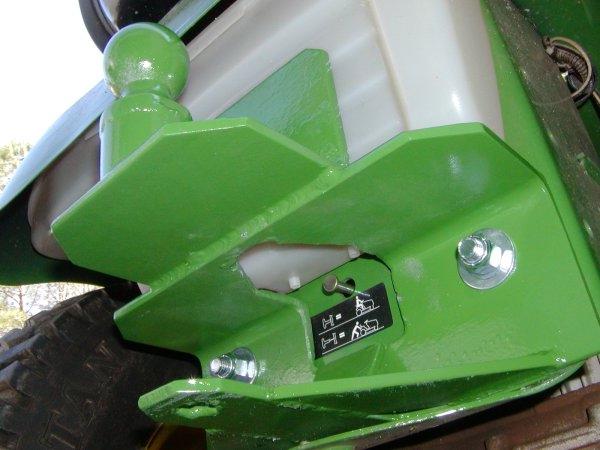

Here you can see the tranny release and the cutout necessary to clear it.
